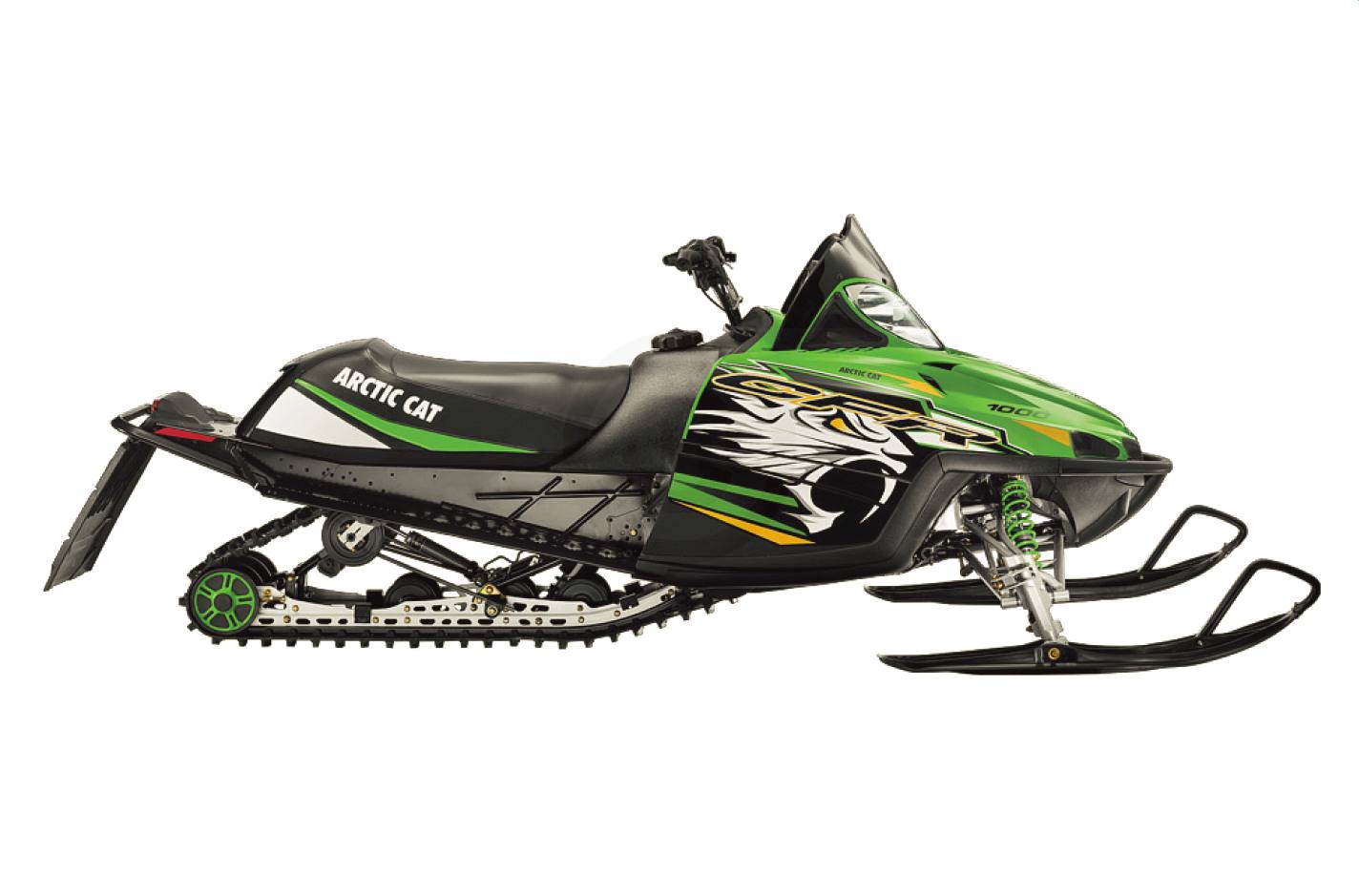

2010 Arctic Cat CFR 1000


Request a Quote Financing Calculator Request a Brochure Financing Form

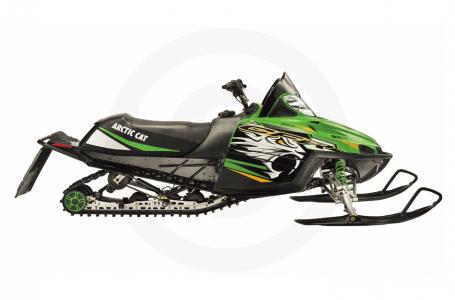

Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

This sled is for those with a passion for power. Under the World's Fastest Snowmobiles™ cornerstone, this 2-stroke is for you if you want to tread the edge of the razor at lighning speed. Bolstering a top-of-the-line 1000 laydown engine, this 999cc of liquid-cooled havoc is contained in a sturdy-built chassis that harnesses pure berserker rage. The 128" x 14" x 1.0" track with a sturdy AWS™ VI double-wishbone front suspension is built with speed in mind and delivers a perfect fit for the rider. And sometimes you need to be able to adjust your grip when you've got a challenging trail in front of you. That's where the CFR 1000's adjustable handlebars come in handy for a custom ride. Select wisely. Your courage is being put to the test.


AWS™ VI Double Wishbone Front Suspension - Up front, its the AWS™ suspension sporting double-wishbone A-arms coupled with hydraulic twin tube shocks that give you the ultimate in tolerance control and durability.


FasTrack® Long-Travel Suspension - The coveted FasTrack® Long-Travel Suspension is on duty in the rear. It's a setup that'll have you smoothing out the bumps and straightening out the curves with the talent of a seasoned professional.


1000 Laydown Engine - The 1000 engine is a 2-stroke, 999c liquid twin with batteryless electronic fuel injection. An engine "laid down" in the chassis moves snowmobile mass toward the ground and efficiently lowers the center of gravity. BEFI adjusts for temperature and altitude. The 1000 also features an Exhaust Pipe Temperature Sensor™ and electronic APV™ exhaust valves to regulate pipe and temperature and optimize performance. Engine reverse is also standard on the 1000. Quick starts, great fuel economy and cleaner emissions.


Engine Reverse: Push—button electronic reverse gets even better. As a feature of the engine, not only is it quick, it’s also a weight saver that sheds nearly 8 pounds.


128" x 14" x 1.0 Track - This one is not your typical 15" track. Nope, this one's a 14" x 128" x 1.0". These measurements are shorthand for "FAST."


Adjustable Handlebar - Rotate the bar forward and back. Twist up and down. Even the bar ends are hooked, giving you a perfect angled handle on whatever comes your way.

    Engine
    • Type: 2-stroke
    • Displacement: 999 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore: 90.3 mm
    • Stroke: 78 mm
    • Lubrication: Oil Injection
    • Ignition: 3D
    • Carburetion: 50 mm throttle body batteryless EFI
    • Exhaust: APV™ with tuned pipe, pipe sensor and canister
    • Fule Capacity: 12.2 gal
    Powertrain
    • Drive Clutch: Arctic (rpm sensing)
    • Driven Clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic Disc
    Color
    • Green
    Suspension
    • Front Suspension: AWS™ VI double-wishbone A-arms with lightweight aluminum FOX® Zero Pro (IFP) shocks, adjustable preload springs with sway bar
    • Front Travel: 9.2 in.
    • Rear Suspension: FasTrack® Long-Travel System slide-rail, adjustable torsion springs, lightweight aluminum FOX® Zero Pro (IFP) shocks with coupling blocks
    • Rear Travel: 13.5 in.
    Dimensions
    • Overall Length: 121 in.
    • Overall Width: 48 in.
    • Ski Stance: 42-44 in. adjustable
    • Track Width: 14 in.
    • Track Length: 128 in.
    • Lug: 1.0 in.
    Standard Features
    • Dual halogen [4- bulb] Headlight
    • UHMW plastic Saddleless Ski Material
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Mechanical gas gauge
    • Low oil light
    • Coolant overheat light
    • Reverse
    • High/Low hand warmer
    • High/low thumb warmer
    • Spark plug holder
    • Belt holder
    • Delux Gauge
    • Adjustable handlebars
    Optional Features
    • Tether switch
    • Hitch
    • 2-up seat
    • Mirrors
    • High windshield
    • Ice scratchers
    • Tank pads
    • Tunnel flares
    • Rack
    • Google holder
    • Storage Bags
    • Tunnel deflectors

    Specifications

    Engine
    Engine Type 2-stroke
    Displacement 999 cc
    Bore x Stroke 90.3 mm x 78 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 50 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust APV™ with tuned pipe, pipe sensor and canister
    Drivetrain
    Brake Type Hydraulic Disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VI double-wishbone A-arms with lightweight aluminum FOX® Zero Pro (IFP) shocks, adjustable preload springs with sway bar
    Front Travel 9.2 in.
    Rear Suspension FasTrack® Long-Travel System slide-rail, adjustable torsion springs, lightweight aluminum FOX® Zero Pro (IFP) shocks with coupling blocks
    Rear Travel 13.5 in.
    Ski Stance 42-44 in. adjustable
    Track Dimensions 128" x 14" x 1.0"
    General
    Speedometer Digital/Analog
    Odometer Dual Stage Trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 12.2 gal
    Color Green
    Options
    Hand & Thumb Warmers Standard
    Reverse Standard

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model CFR 1000
    Style Performance
    MSRP* $11,899.00
    Drivetrain
    Brake Type Hydraulic Disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 2-stroke
    Displacement 999 cc
    Bore x Stroke 90.3 mm x 78 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 50 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust APV™ with tuned pipe, pipe sensor and canister
    Alternator
    General
    Speedometer Digital/Analog
    Tachometer
    Odometer Dual Stage Trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 12.2 gal
    Dry Weight
    Windshield
    Color Green
    Warranty
    Options
    Electric Start
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors
    Suspension
    Front Suspension AWS™ VI double-wishbone A-arms with lightweight aluminum FOX® Zero Pro (IFP) shocks, adjustable preload springs with sway bar
    Front Travel 9.2 in.
    Rear Suspension FasTrack® Long-Travel System slide-rail, adjustable torsion springs, lightweight aluminum FOX® Zero Pro (IFP) shocks with coupling blocks
    Rear Travel 13.5 in.
    Ski Type
    Ski Stance 42-44 in. adjustable
    Track Type
    Track Dimensions 128" x 14" x 1.0"

    Current Promotions

    There are currently no promotions available for this product.
